How to Create Your Own Model

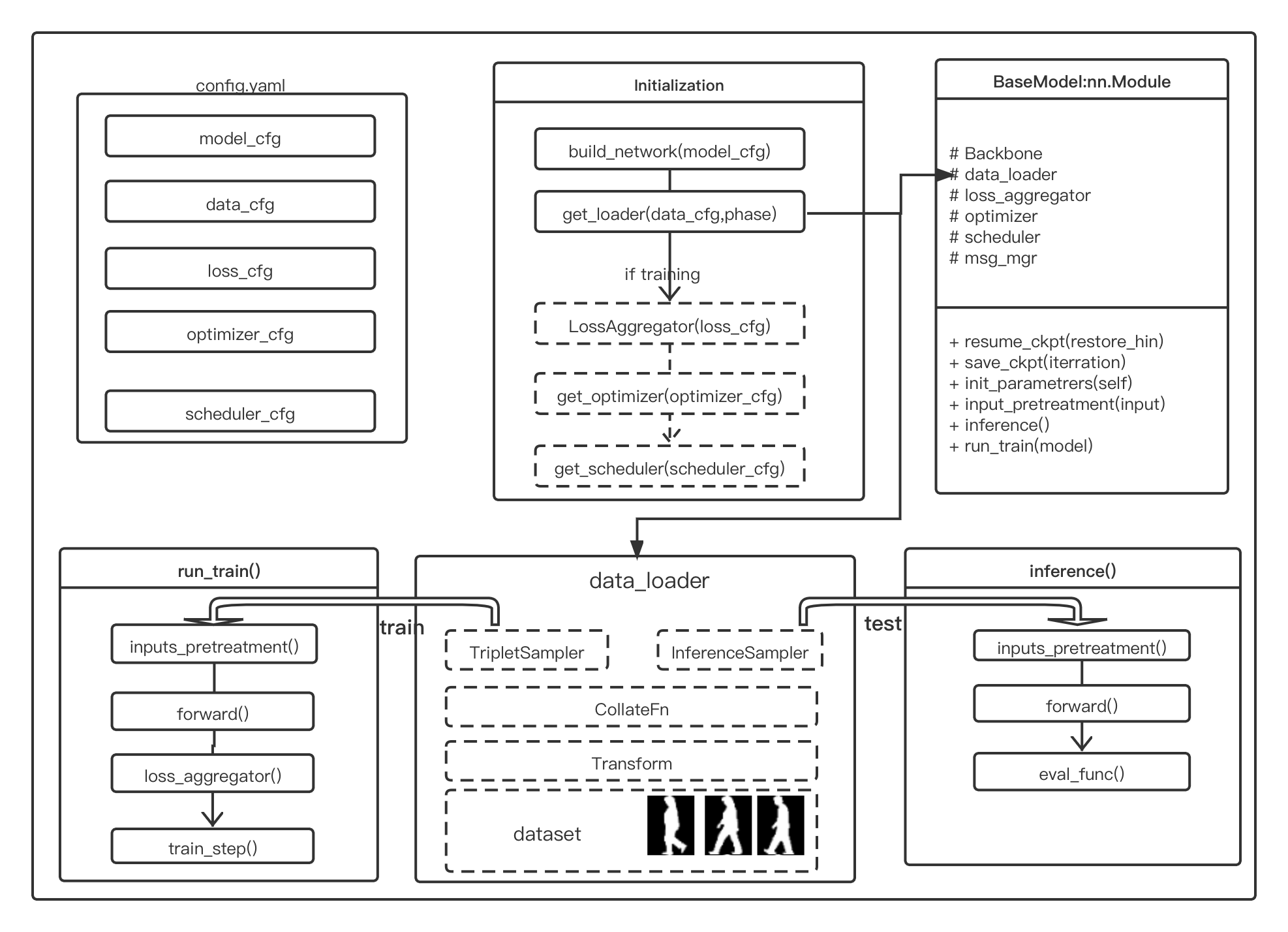

Pipeline

A new model

If you want to design a new model, you need to write a class inherited from BaseModel, e.g, NewModel in newmodel.py:

from ..base_model import BaseModel

class NewModel(BaseModel):
    def __init__(self, cfgs, is_training):
        super().__init__(cfgs, is_training)

    def build_network(self, model_cfg):
        self.encoder = ...

    def forward(self, inputs):
        ipts, labs, typs, viws, seqL = inputs
        sils = ipts[0]
        if len(sils.size()) == 4:
            sils = sils.unsqueeze(2)
        del ipts
        n, s, c, h, w = sils.size()

        embed_1, logits, embed = self.encoder(sils)

        return {
            'training_feat': {
                'triplet': {'embeddings': embed_1, 'labels': labs},
                'softmax': {'logits': logits, 'labels': labs}
            },
            'visual_summary': {
                'image/sils': sils.view(n*s, 1, h, w)
            },
            'inference_feat': {
                'embeddings': embed
            }
        }

In your model class, at least you need to implement build_network() and forward() functions. The first is used to build the netwroks, and it does not need return value. Another is used to calculate the features, the return value is fixed in dictionary format

training_feat is for the loss computing, and it must be a dict object.

visual_summary is for visualization, and it must be a dict object.

inference_feat is for the inference, and it must be a dict object.

triplet and softmax are the prefixes (or names) of the loss function.

embeddings, logits and labels are the input arguments of the loss function.

More information should be seen in base_model.py and loss_aggregator.py.

After finishing the model file, you have two steps left to do:

Step 1: Put your newmodel.py under lib/modeling/models.

Step 2: Specify the model name in a yaml file:

model_cfg:
  model: NewModel
  param1: ...
  param2: ...
  param3: ...

A new loss

If you want to write a new loss, you need to write a class inherited from lib/modeling/losses, like this

from .base import BaseLoss

class NewLoss(BaseLoss):
    def __init__(self, *args, **kwargs):
        super(NewLoss, self).__init__(*args, **kargs)

    @gather_and_scale_wrapper
    def forward(self, embeddings, labels):
        pass

Remember to use gather_and_scale_wrapper to wrap your forward function if your loss is computed by pairs like triplet. By this, we gather all features to one GPU card and scale the loss by the number of GPUs.

Then, put your loss in lib/modeling/losses so that you can use it in config file.

Moreover, refer to loss_aggregator.py to explore how does your defined loss work in the model.
